[Flutter] CustomPaint 디자인 모음 (코드있음)







1. 티켓 모양





class TicketWidget extends StatelessWidget {
  const TicketWidget({super.key});

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: SafeArea(
        child: Padding(
          padding: const EdgeInsets.symmetric(horizontal: 16.0, vertical: 16),
          child: SizedBox(
            height: 188,
            width: double.infinity,
            child: CustomPaint(
              painter: TicketPainter(),
            ),
          ),
        ),
      ),
    );
  }
}

class TicketPainter extends CustomPainter {
  final _paint = Paint()
    ..style = PaintingStyle.stroke
    ..strokeWidth = 1
    ..color = Colors.grey;

  final _linePaint = Paint()
    ..strokeWidth = 1
    ..color = Colors.grey.shade300
    ..style = PaintingStyle.stroke;

  static const double _ticketRadius = 4;
  static const double _lineWidth = 0.825;
  static const double _holeRadius = 8;
  static const dotHeight = 8;
  static const dotPadding = 4;

  @override
  void paint(Canvas canvas, Size size) {
    final height = size.height;
    final width = size.width;
    final lineWidth = width * _lineWidth;

    Path path = Path()
      ..moveTo(0, _ticketRadius)
      ..lineTo(0, height - _ticketRadius)
      ..quadraticBezierTo(0, height, _ticketRadius, height)
      ..arcTo(
        Rect.fromCircle(center: Offset(lineWidth, height), radius: _holeRadius),
        pi,
        pi,
        false,
      )
      ..lineTo(width - _ticketRadius, height)
      ..quadraticBezierTo(width, height, width, height - _ticketRadius)
      ..lineTo(width, _ticketRadius)
      ..quadraticBezierTo(width, 0, width - _ticketRadius, 0)
      ..arcTo(
        Rect.fromCircle(center: Offset(lineWidth, 0), radius: _holeRadius),
        0,
        pi,
        false,
      )
      ..lineTo(_ticketRadius, 0)
      ..quadraticBezierTo(0, 0, 0, _ticketRadius);

    canvas.drawPath(path, _paint);

    path = Path()
      ..moveTo(lineWidth, _holeRadius + 12)
      ..lineTo(lineWidth, _holeRadius + 12 + 4);


    double blank = _holeRadius + 12 + 4;

    final dotCount = ((height - ((blank) * 2)) / (dotPadding + dotHeight)).floor();


    for(var i = 0; i < dotCount; i++) {
      path.moveTo(lineWidth, blank + dotPadding);
      path.lineTo(lineWidth, blank + dotPadding + dotHeight);
      blank += dotPadding + dotHeight;
    }

    path.moveTo(lineWidth, blank + dotPadding);
    path.lineTo(lineWidth, blank + dotPadding + 4);

    canvas.drawPath(path, _linePaint);
  }

  @override
  bool shouldRepaint(covariant CustomPainter oldDelegate) {
    return false;
  }
}

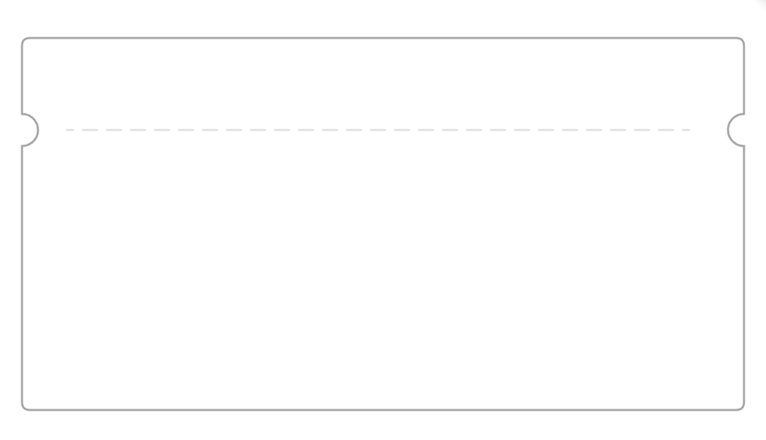

2. 티켓 모양 v2



class TicketWidget extends StatelessWidget {
  const TicketWidget({super.key});

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: SafeArea(
        child: Padding(
          padding: const EdgeInsets.symmetric(horizontal: 16.0, vertical: 16),
          child: SizedBox(
            height: 186,
            width: double.infinity,
            child: CustomPaint(
              painter: TicketPainter(),
            ),
          ),
        ),
      ),
    );
  }
}

class TicketPainter extends CustomPainter {
  final _paint = Paint()
    ..style = PaintingStyle.stroke
    ..strokeWidth = 1
    ..color = Colors.grey;

  final _linePaint = Paint()
    ..strokeWidth = 1
    ..color = Colors.grey.shade300
    ..style = PaintingStyle.stroke;

  static const double _ticketRadius = 4;
  static const double _lineHeight = 0.2473;
  static const double _holeRadius = 8;
  static const dotWidth = 8;
  static const dotPadding = 4;

  @override
  void paint(Canvas canvas, Size size) {
    final height = size.height;
    final width = size.width;
    final lineHeight = height * _lineHeight;

    Path path = Path()
      ..moveTo(0, _ticketRadius)
      ..arcTo(
        Rect.fromCircle(center: Offset(0, lineHeight), radius: _holeRadius),
        -pi / 2,
        pi,
        false,
      )
      ..lineTo(0, height - _ticketRadius)
      ..quadraticBezierTo(0, height, _ticketRadius, height)
      ..lineTo(width - _ticketRadius, height)
      ..quadraticBezierTo(width, height, width, height - _ticketRadius)
      ..arcTo(
        Rect.fromCircle(center: Offset(width, lineHeight), radius: _holeRadius),
        pi / 2,
        pi,
        false,
      )
      ..lineTo(width, _ticketRadius)
      ..quadraticBezierTo(width, 0, width - _ticketRadius, 0)
      ..lineTo(_ticketRadius, 0)
      ..quadraticBezierTo(0, 0, 0, _ticketRadius);

    canvas.drawPath(path, _paint);

    path = Path()
      ..moveTo(_holeRadius + 14, lineHeight)
      ..lineTo(_holeRadius + 14 + 4, lineHeight);

    double blank = _holeRadius + 14 + 4;

    final dotCount =
        ((width - ((blank) * 2)) / (dotPadding + dotWidth)).floor();

    for (var i = 0; i < dotCount; i++) {
      path.moveTo(blank + dotPadding, lineHeight);
      path.lineTo(blank + dotPadding + dotWidth, lineHeight);
      blank += dotPadding + dotWidth;
    }

    path.moveTo(blank + dotPadding, lineHeight);
    path.lineTo(blank + dotPadding + 4, lineHeight);

    canvas.drawPath(path, _linePaint);
  }

  @override
  bool shouldRepaint(covariant CustomPainter oldDelegate) {
    return false;
  }
}
